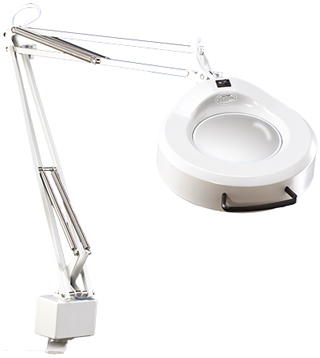

IFM is an ideal lighter-duty magnifier for low-power inspection and an economical choice for tight budgets.
Quantity:
Features and Specifications
Options
Warranty Information
Optics A 5" diameter, 3- (1.75X) or 5-diopter (2.25X) lens provides a large viewing area and a 22W circline fluorescent lamp with built-in starter switch produces 360º shadow-free illumination with just a touch. A lamp diffuser cover protects the bulb from damage. Select models include a 3-wire single outlet receptable at the base of the arm for added convenience.
Flexibility and precision The flexibility of the neck assembly and external spring-balanced arm allow for maximum movement and positioning.
Colors: Light grey or white.
Technical Description
Ballast Electronic ballast.
Body material and color Stamped steel shade. Color: Light grey or white.
Mounting Standard with edge clamp or weighted base. Additional mounting options are also available.
Optics 5-diopter (2.25X), 5" diameter glass lenses are standard. For additional magnification, a secondary 4-, 6- or 10-diopter STAYS lens can be attached to the primary lens.
Power Supply Supplied with cable and plug. Models 16345WT and 16346WT include a 3-wire single outlet receptacle at the base of the arm.
Arm technology and movement External-spring 45" or 30" L-arm.
Lightsource/Optic 22W circline fluorescent.
